Features:
Superior performance and lamp control over 10% variations in supply voltage
Low line starting current
Greater control of lamp power and colour temperature
Significant reduction in lamp flicker
High power factor characteristic 0.95 or higher
High input impedance to supply switching frequencies
Will sustain lamp operation with dips in supply voltageIn the order of 40-50%
Features include
Long Service Life
Vacuum impregnation
Non-audible noise level
300mm Long Flying Leads Provided
Winding insulation Class H materials
Fixed air Gap ensuring permanent calibration
Tw150 winding temperature rating
C-tick
OPTIONAL EXTRAS INCLUDE:
Timer Long Distance Ignitors
Change Over Relays (SCR-8)
Final 100% Testing:
Winding short & open Circuit Insulation

Constant wattage ballast although heavier, larger and more costly provides numerous advantages over reactor-ignitor gear. The lamp output power is maintained at a highly constant state, even over supply fluctuations, due to the regulation action of the auto-transformer. Hence the name Constant Wattage (CWA).

LAMP WATTS	250W	400W	400W	1000W	1000W
CHOKE PART NO.	PHS250C240	PHS400C240	PHS400C415	PHS1000C240	PHS1000C415
LINE VOLTAGE	240V	240V	415V	240V	415V
LINESTART CURRENT	0.65A	1.10A	0.65A	3.00A	1.70A
LINE CURRENT	1.31A	2.04A	1.18A	4.60A	2.65A
LAMP VOLTAGE	100V	100V	100V	250V	250V
LAMPSTART CURRENT	4.05A	5.60A	5.60A	6.80A	6.80A
LAMP CURRENT	3.00A	4.60A	4.60A	4.70A	4.70A
IGNITOR	IGH301	IGH301	IGH301	IGH301	IGH301
CAPACITOR PF. = 0.85-0.90	35uF 330V	48uF 330V	48uF 330V	28uF 525V	28uF 525V
LAMPS	PHILIPS GE VENTURE SYLVANIA OSRAM

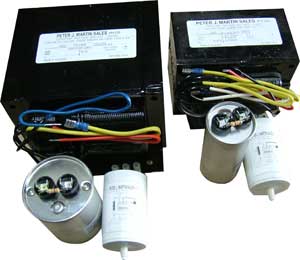

Constant Wattage HPS

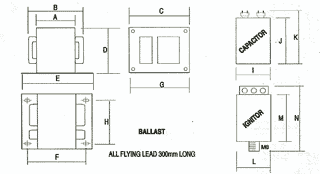

Part Number		PHS400	PMH1000
Ballast dimensions	A	65	100
	B	100	140
	C	153	153
	D	115	115
	E	180	180
	F	155	155
	G	140	140
	H	109	109
Capacitor dimensions	I	62	62
	J	95	95
	K	110	110
number of capacitors		2	1
ignitor dimensions	L	35	35
	M	55	55
	N	80	80
