Features:
Superior performance and lamp control over 10% variations in supply voltage
Low line starting current
Greater control of lamp power and colour temperature
Significant reduction in lamp flicker
High power factor characteristic 0.95 or higher
High input impedance to supply switching frequencies
Will sustain lamp operation with dips in supply voltageIn the order of 40-50%
Features include
Long Service Life
Vacuum impregnation
Non-audible noise level
300mm Long Flying Leads Provided
Winding insulation Class H materials
Fixed air Gap ensuring permanent calibration
Tw150 winding temperature rating
C-tick N3499
OPTIONAL EXTRAS INCLUDE:
Timer Long Distance Ignitors
Change Over Relays (SCR-8)
Final 100% Testing:
Winding short & open Circuit Insulation

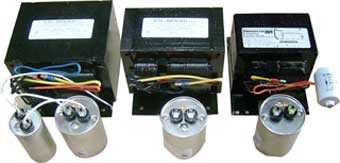

Constant wattage ballast although heavier, larger and more costly provides numerous advantages over reactor-ignitor gear. The lamp output power is maintained at a highly constant state, even over supply fluctuations, due to the regulation action of the auto-transformer. Hence the name Constant Wattage (CWA).

		LINE			LAMP
PART NO.	Watts	Voltage	Start current	Current	Voltage	Start current	Current	Ignitor	Capacitor	Lamps for all
PMH175C240	175	240	0.51A	0.89A	130V	1.73A	1.50A		12uF/440V	GE Osram Philips Sylania Venture
PMH250C240	250	240	0.70A	1.25A	130V	2.40A	2.13A	IGH201	15uF/525V
PMH250C415	250	415	0.42A	0.71A	130V	2.40A	2.13A	IGH201	15uF/525V
PMH400C240	400	240	1.18A	2.01A	135V	3.75V	3.25A	IGH201	28uF/525V
PMH400C415	400	415	0.68A	1.16A	135V	3.75A	3.25A	IGH201	28uF/525V
PMH1000C240	1000	240	3.10A	4.60A	263V	5.83A	4.20A		28uF/525V
PMH1000C415	1000	415	1.80A	2.66A	263V	5.83A	4.20A		28uF/525V
PMH1500C240	1500	240	4.40A	6.90A	265V	8.90A	6.30A		43uF/525V
PMH1500C415	1500	415	2.50A	3.98A	265V	8.90A	6.30A		43uF/525V
PMHL1500C240/C	1500 LINEAR	240			500V	3.3A			2x20UF/525V
PMHL1500C415/C	1500 LINEAR	415			500V	3.3A			2x20UF/525V

Constant Wattage Metal Halide
Part Number		PMH400C	PMH1000C	PMH1500C
Balast dimensions	A	65	100	130
	B	100	140	175
	C	153	153	153
	D	115	115	115
	E	180	180	`180
	F	155	155	155
	G	140	140	140
	H	109	109	109
Capacitor dimensions	I	62	62	62
	J	95	95	95
	K	110	110	110
number of capacitors		1	1	2
