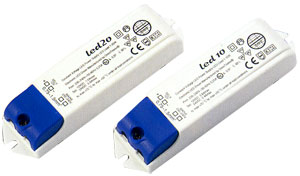

LED Driver's Constant Current and Constant Voltage

Features for the constant current driver
For constant current LED 350mA
Universal voltage100-240 VAC, 50/60Hz
1W LED's

Features for the constant voltage driver
Constant output voltage12/24VDC
Universal voltage 100-240 VAC, 50/60Hz
Rated load up to 12-60W

Model no.	LED 10C	LED 10V	LED 20C	LED 20V	LED 40C	LED 40V	LED 60V	LED 10e
supply voltage	90-240v						220-240v	90-240v
Constant current	350mA 1W LED's	-	350mA 1W LED's	-	350mA 1W LED's	-	-	-
Constant voltage	-	12v In parrallel connection	-	12V In parrallel connection	-	12 or 24V In parrallel connection	12 or 24V In parrallel connection	12V In parrallel connection
Max load	12W	12W	24W	24W	40W	40W	60W	12W
