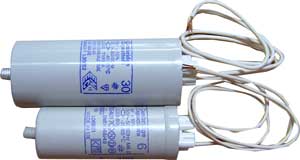

LIGHTING CAPACITORS FOR PARALLEL
COMPENSATION
|
- Features
- Rated Voltage: 250 VAC 50-60Hz
- Capacitance range:2µF-50µF
+-10%tolerance
- Termination: 4 way wire grip connector
complete with discharge resistor. Optional 300mm leads
fitted to connector.
- Mounting: M8 x 8mm stud. Spring steel
mounting clip avaliable
- Operating temp. -25C to +85C
- Construction: MPP film Capacitor, Internally
dry in flame retardent plastic case
- Approvals EN61048/EN61049/BS4017
|
|
