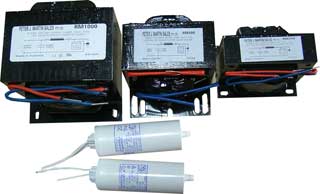

MERCURY VAPOUR BALLAST

Features:
Long Service Life
Vacuum impregnation
Non-audible noise level
300mm Long Flying Leads Provided
Power Factor Corrected to 0.85 with nominated capacitor
Winding insulation Class H materials
Fixed air Gap ensuring permanent calibration
Tw150 winding temperature rating
C-tick N3499
OPTIONAL EXTRAS INCLUDE:
Timer Long Distance Ignitors
Change Over Relays
Power Reduction Switches
FINAL TESTING:
Winding short Circuit
Insulation
Impedance
Continuity

Lamp Watts	Choke Part No.	Line voltage	Line start current	Line current	Lamp voltage	Lamp start current	Lamp current	Ignitor if req.	Capacitor PF. = 0.85-0.90	lamps
175W	PMV 175R240T	240V	1.73A	0.9A	130	2.5	1.50	-	14uf 250V	EYE GE Sylvania Venture
250W	PMV 250R240	240V	2.50A	1.45V	130	3.65	2.13	-	15uF 250V	EYE GE Philips Sylvania Venture Toshiba
400W	PMV 400R240	240V	3.80A	2.12	135	5.50	3.25	-	20uF 250V	GE EYE Philips Thorn Sylvania
1000W	PMV 1000R240	240V	8.00A	5.33	135	11.5	7.5	-	45uF 250v	GE EYE Philips OSRAM Thorn Sylvania
1000W	PMV 1000415	240V	3.88A	2.71	263	5.82	4.20	IGH202	28uf 440V+	GE Venture Philips Sylvania
