Weatherproof Transformers

Features: IP67 rated for full protection in outdoor use Auto resetting thermal cutout High Quality toroid transformer Cable exit shrouds accomodate conduit connection Rugged polycarbonate enclosure Thermal and UV Stable epoxy resin encapsulate Approved to AS/NZS/EN 61558.2.6 1.8m Flex lead & Plug 0.8M low voltage lead Dimming use inductive load dimmer only For best performance and long life use 80% of stated rating

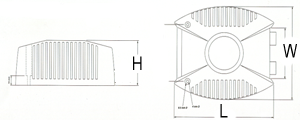

	Product Code	Input	Output	VA	W	H	L	weight(K)
	PMAQO12-050	240VAC	12VAC	50	112	65	133	2.02
	PMAQO12-100	240VAC	12VAC	100	112	65	133	2.3
	PMAQO12-150	240VAC	12VAC	150	145	80	165	2.5
	PMAQO12-200	240VAC	12VAC	200	145	80	165	4.6
	PMAQO12-300	240VAC	12VAC	300	145	80	165	5.1
	PMAQO12-400	240VAC	12VAC	400	145	80	165	6.0
	PMAQO24-100	240VAC	24VAC	100	112	65	133	2.3
	PMAQO24-200	240VAC	24VAC	200	145	80	165	4.6
	PMAQO24-300	240VAC	24VAC	300	145	80	165	5.1
	PMAQO24-400	240VAC	24VAC	400	145	80	165	6.0
