RF CONTROL TRANSFORMER
  • Features:
  • Long Service life
  • High efficiency
  • Highest Insulation level - class ‘H’
  • Excellent regulation
  • High power density
  • Low magnetic stray field
  • Excellent load weight ratio
  • Standard secondary voltages at full resistive load. 100 % duty cycle (continuous operation)
  • Recommended total load is 20 to 100% of the VA rating
    Installation:
  • Transformers must be protected by either a primary or secondary fuse
    Final 100% Testing:
  • High Voltage
  • Winding Short Circuit
  • Open Circuit Secondary Voltage
  • Voltage Ratio


200 VA

60 VA

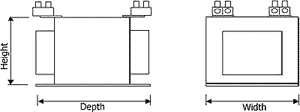

Part Primary Secondary Dimensions
RF415/12/12/60VA 415 12V 60VA (5A) 24V 60VA (2.5A) H:65 W:58 D:77
RF415/12/12/200VA 415 12V 200VA (16A) 24V 200VA (8A) H: 80 W: 80 D: 95
RF415/120/120/60VA 415 120V 60VA (0.5A) 240V 60VA(0.25A) H:65 W:58 D:77
RF415/120/120/200VA 415 120V 200VA(1.6A) 240V 200VA (0.83A) H: 80 W: 80 D: 95
