Long Service life (no maintenance, extremely high reliability )
Reliable performance (cool, quite operation –no fans or moving parts)
Rugged construction and conservative ratings
Tapped at 50%, 65% 80%, & 100% (other tapings available on request)
Ordinary Duty (3 starts per/hour, 15 sec. per start, Class 0.03)
Intermittent Duty (12 starts per/hour, 15 sec. per start, Class 0.1)
Frequent Duty (30 starts per/hour, 15 sec. per start, Class 0.3)
Highest Insulation level - class ‘H’
Excellent regulation
High power density
Excellent load weight ratio
2 or 3 coil designs available
Voltages ranging from 380 to 3.3 KV available
Normal open or closed thermostats or thermistors fitted.
Transformers must be protected by external devices such as Fuses, circuit breakers or thermal relay contacts.
High Voltage
Open Circuit Secondary Voltage
Voltage Ratio


THREE PHASE MOTOR STARTING AUTO TRANSFORMERS

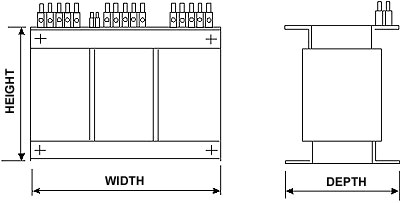

PART NO.	KILOWATT			DIMENSIONS - 3 COIL				MASS
	0.03	0.1	0.3	H	W	d	D	MASS
	3st/hr	12st/hr	30st/hr	mm	mm	mm	mm	kg
PM2/3MS0008	8	5.5	2.5	155	255	97	150	12
PM 2/3MS0010	10	7.5	3.5	155	255	97	150	14
PM 2/3MS0015	15	11	5.5	200	255	90	150	18
PM 2/3MS0020	20	15	7.5	200	275	99	150	21
PM 2/3MS0025	25	18	9	200	275	90	160	23
PM 2/3MS0030	30	22	11	200	275	129	180	30
PM 2/3MS0040	40	30	15	310	300	127	180	39
PM 2/3MS0045	45	33	17	310	300	127	180	41
PM 2/3MS0050	50	38	19	310	300	138	190	46
PM 2/3MS0060	60	45	22	310	300	145	200	50
PM 2/3MS0070	70	52	25	320	320	146	200	53
PM 2/3MS0075	75	55	32	320	320	146	200	57
PM 2/3MS0090	90	67	34	350	350	130	200	60
PM 3MS0100	100	70	36	350	350	140	200	65
PM 3MS0110	110	80	40	360	350	140	200	70
PM 3MS0125	125	90	45	360	350	140	200	85
PM 3MS0150	150	112	55	385	350	180	250	100
PM 3MS0180	180	125	65	420	410	164	250	120
PM 3MS0200	200	150	75	420	410	175	250	135
PM 3MS0250	250	180	95	430	410	175	250	145
PM 3MS0300	300	225	112	470	410	175	250	150
PM 3MS0350	350	250	125	470	410	203	300	160
PM 3MS0400	400	300	150	470	410	209	300	175
PM 3MS0450	450	335	170	470	410	210	300	185
PM 3MS0500	500	375	190	580	490	212	300	260
PM 3MS0600	600	450	225	580	490	201	300	260
PM 3MS0700	700	500	250	550	490	225	330	280
PM 3MS0800	800	600	300	510	510	250	360	320
PM 3MS0900	900	670	340	550	510	265	360	370
PM 3MS1000	1000	700	360	590	570	250	360	410
